M28C17A - 16 Kbit (2K x 8) Parallel EEPROM

The M28C16A and M28C17Aare 2K x8 low power Parallel EEPROM fabricatedwith STMicroelectronics proprietarysingle polysilicon CMOS technology.

The device offers fast access time with low power dissipation and requires a 5V or 3V power supply.

VCC 11 A0-A10 8 DQ0-DQ7 Table 1.

Signal Names A0-A10 Ad

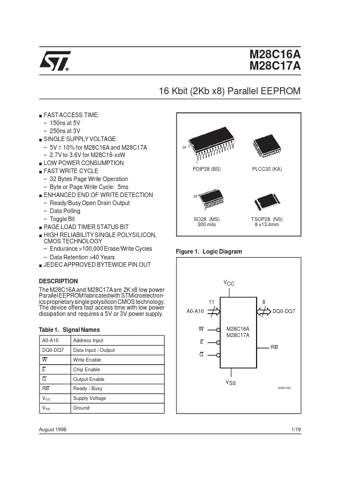

M28C16A M28C17A 16 Kbit (2Kb x8) Parallel EEPROM FAST ACCESS TIME: 150ns at 5V 250ns at 3V SINGLE SUPPLY VOLTAGE: 5V ± 10% for M28C16A and M28C17A 2.7V to 3.6V for M28C16-xxW LOW POWER CONSUMPTION FAST WRITE CYCLE 32 Bytes Page Write Operation Byte or Page Write Cycle: 5ms ENHANCED END OF WRITE DETECTION Ready/Busy Open Drain Output Data Polling Toggle Bit PAGE LOAD TIMER STATUS BIT HIGH RELIABILITY SINGLE
