M2837VC220 Datasheet - IXYS

M2837VC220 Fast Recovery Diode

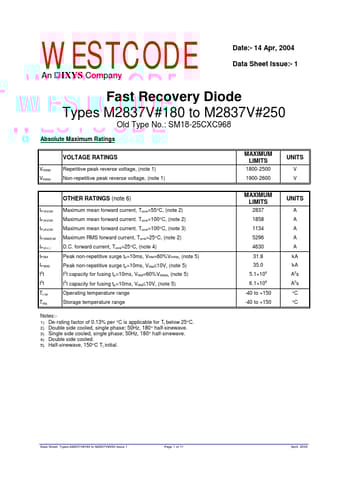

WESTCODE An IXYS Company Date:- 14 Apr, 2004 Data Sheet Issue:- 1 Fast Recovery Diode Types M2837V#180 to M2837V#250 Old Type No.: SM18-25CXC968 Absolute Maximum Ratings VRRM VRSM VOLTAGE RATINGS Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 1800-2500 1900-2600 UNITS V V OTHER RATINGS (note 6) IF(AV)M IF(AV)M IF(AV)M IF(RMS)M IF(d.c.) IFSM IFSM2 I2t I2t Tj op Tstg Maximum mean forward current, Tsink=55°C, (note 2) Maximum mean fo.

M2837VC220 Datasheet (359.82 KB)
