M28010 1-Mbit 128K x 8 Parallel EEPROM

The M28010 devices consist of 128Kx8 bits of low power, parallel EEPROM, fabricated with STMicroelectronics’ proprietary double polysilicon CMOS technology. The devices offer fast access time, with low power dissipation, and require a single voltage supply (5V, 3V or 2V, depending on the option chos.

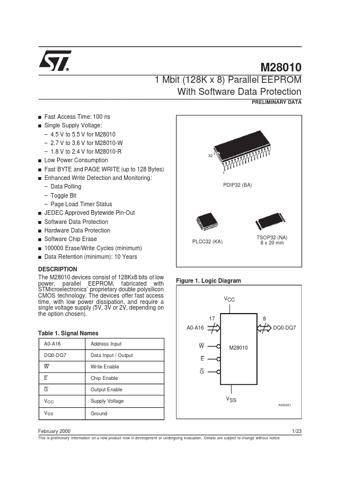

M28010 1 Mbit (128K x 8) Parallel EEPROM With Software Data Protection PRELIMINARY DATA s s Fast Access Time: 100 ns Single Supply Voltage: 4.5 V to 5.5 V for M28010 2.7 V to 3.6 V for M28010-W 1.8 V to 2.4 V for M28010-R 32 s s s Low Power Consumption Fast BYTE and PAGE WRITE (up to 128 Bytes) Enhanced Write Detection and Monitoring: Data Polling Toggle Bit Page Load Timer Status PDIP32 (BA) 1 s s s s s s JEDEC Approved Bytewide P.

M28010 Features

* tion. Following the first Byte Write instruction, the
