M95020-W

SPI bus EEPROM

M95020-W Features

* Compatible with the serial peripheral interface (SPI) bus

* Memory array

* 1/2/4-Kbit (128/256/512 bytes) of EEPROM

* Page size: 16 bytes

* Additional write lockable page (Identification page) for M95040-DF order code

* Write

* Byte Write wit

M95020-W General Description

1 Description The M95010/M95020/M95040 devices (M950x0) are electrically erasable programmable memories (EEPROMs) organized as 128/256/512 x 8 bits respectively, accessed through the SPI bus. The M950x0-W can operate with a supply voltage from 2.5 V to 5.5 V, the M950x0-R can operate with a suppl.

M95020-W Datasheet (929.47 KB)

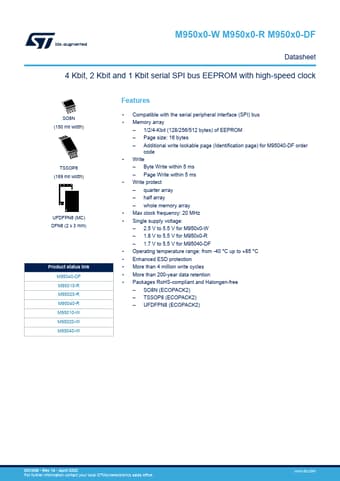

Preview of M95020-W PDF

Datasheet Details

Part number:

M95020-W

Manufacturer:

STMicroelectronics ↗

File Size:

929.47 KB

Description:

Spi bus eeprom.
M950x0-W M950x0-R M950x0-DF Datasheet 4 Kbit, 2 Kbit and 1 Kbit serial SPI bus EEPROM with high-speed clock SO8N (150 mil width) TSSOP8 (169 mil widt.
