M95512-R - 512-Kbit Serial SPI bus EEPROM

STMicroelectronics

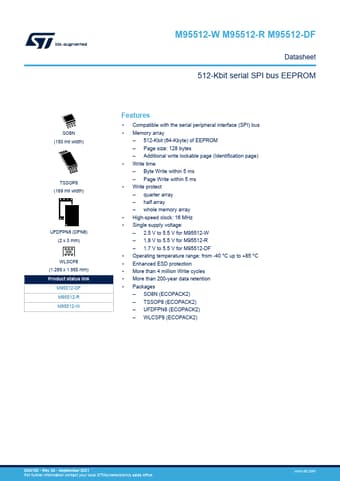

M95512-R Datasheet Preview — Preview of M95512-R PDF

Datasheet Details

Part number	M95512-R
Manufacturer	STMicroelectronics ↗
File Size	580.22 KB
Description	512-Kbit Serial SPI bus EEPROM
Datasheet	M95512-R_STMicroelectronics.pdf

M95512-R Product details

Description

1 Description The M95512 devices are electrically erasable programmable memories (EEPROMs) organized as 65536 x 8 bits, accessed through the SPI bus.The M95512-W can operate with a supply voltage from 2.5 V to 5.5 V, the M95512-R can operate with a supply voltage from 1.8 V to 5.5 V and the M95512-DF can operate with a supply voltage from 1.7 V to 5.5 V, over an ambient temperature range of -40 °C / +85 °C.The M95512-DF offers an additional page, named the Identification page (128 bytes).T

Features

Compatible with the serial peripheral interface (SPI) bus.
Memory array.
512-Kbit (64-Kbyte) of EEPROM.
Page size: 128 bytes.
Additional write lockable page (Identification page).
Write time.
Byte Write within 5 ms.
Page Write within 5 ms.
Write protect.
quarter array.
half array.
whole memory array.
High-speed clock: 16 MHz.
Single supply voltage:.
2.5 V to 5.5.
