M95M04-DR Datasheet, Eeprom, STMicroelectronics

M95M04-DR Features

  • Eeprom
  • Compatible with the serial peripheral interface (SPI) bus
  • Memory array
      – 4 Mbit (512 Kbytes) of EEPROM
      – Page size: 512 bytes
    &nb

PDF File Details

Part number:

M95M04-DR

Manufacturer:

STMicroelectronics ↗

File Size:

893.21kb

Download:

📄 Datasheet

Description:

4-mbit serial spi bus eeprom. 1 Description The M95M04-DR device is electrically erasable programmable memory (EEPROM) organized as 524288 x 8 bits, accessed th

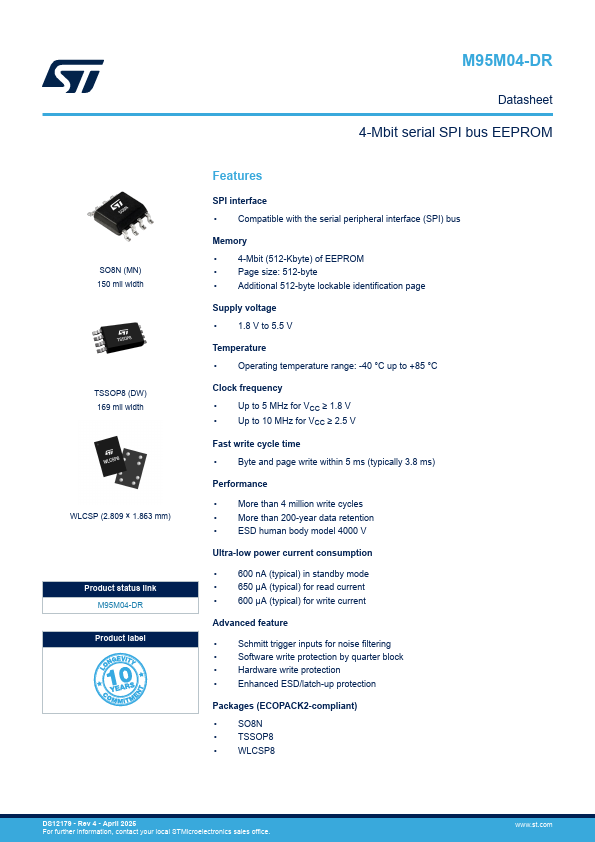

Datasheet Preview: M95M04-DR 📥 Download PDF (893.21kb)

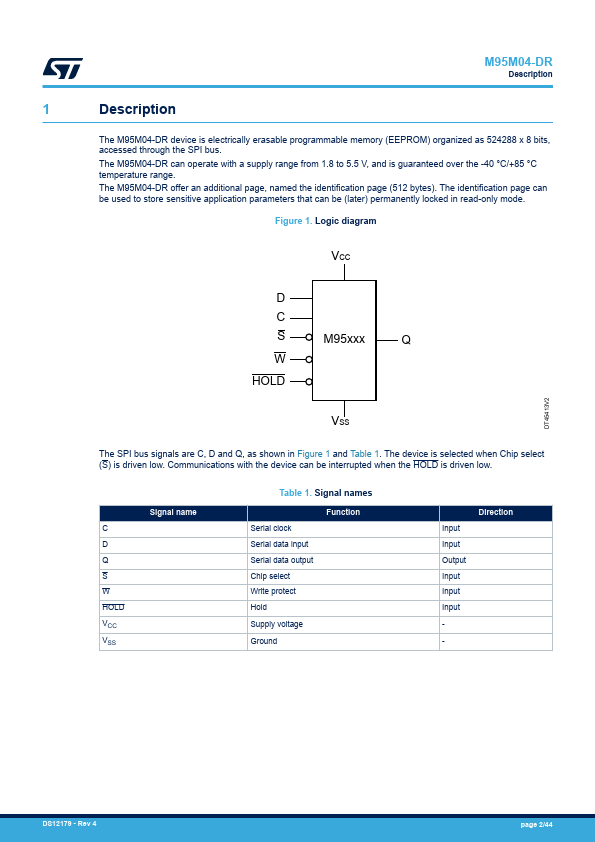

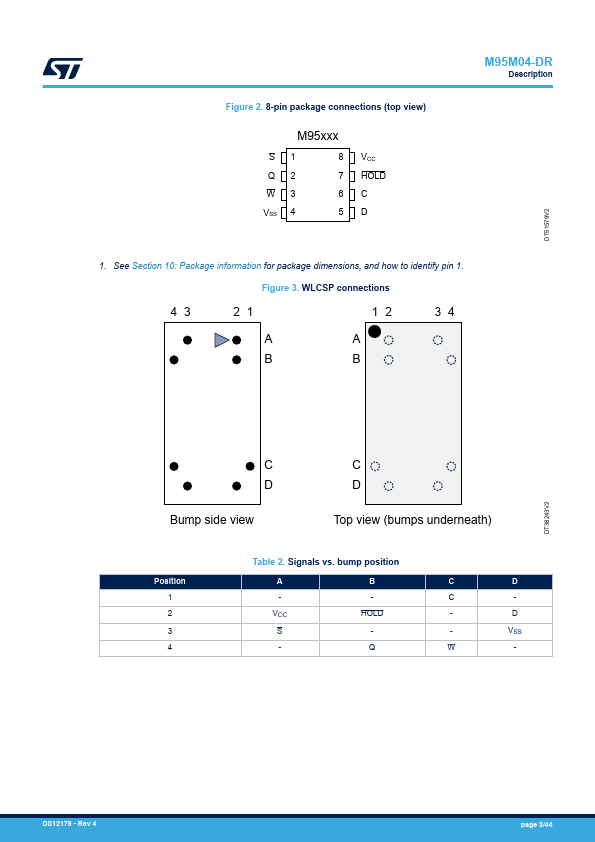

Page 2 of M95M04-DR Page 3 of M95M04-DR
