MC4558CN Datasheet, Amplifier, STMicroelectronics

✔ MC4558CN Features

Internally compensated
Short-circuit protection
Gain and phase match between amplifier
Low power consumption
Pin-to-pin compatible with MC1458/LM358
Gain band

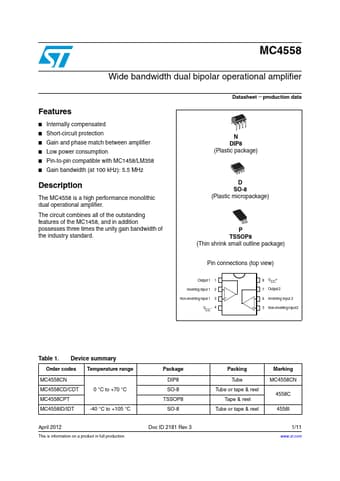

PDF File Details

STMicroelectronics manufacturer logo and representative part image

Part number:

MC4558CN

Manufacturer:

STMicroelectronics ↗

File Size:

458.15kb

Download:

📄 Datasheet

Description:

Wide bandwidth dual bipolar operational amplifier. The MC4558 is a high performance monolithic dual operational amplifier. The circuit combines all of the outstanding features of the M

📥 Download PDF (458.15kb)
