P0102DN

Sensitive 0.8A SCR thyristor

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor STMicroelectronics P0102DN-5AA4 SCR 400V 800MA SOT223 DigiKey 5256 500 units
$0.32

P0102DN Datasheet (361.28 KB)

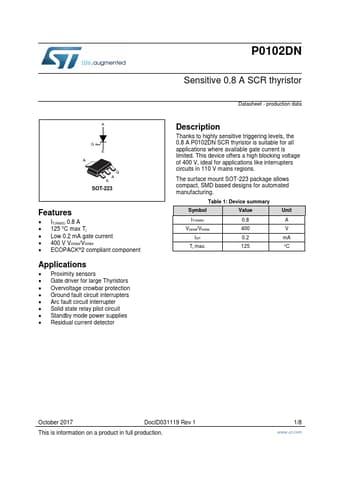

Preview of P0102DN PDF Datasheet

Datasheet Details

Part number:

P0102DN

Manufacturer:

STMicroelectronics ↗

File Size:

361.28 KB

Description:

Sensitive 0.8a scr thyristor.

P0102DN Features

* IT(RMS) 0.8 A

* 125 °C max Tj

* Low 0.2 mA gate current

* 400 V VDRM/VRRM

* ECOPACK®2 compliant component Applications

* Proximity sensors

* Gate driver for large Thyristors

* Overvoltage crowbar protection

* Ground fault circuit interrupters

* Arc fault cir

P0102DN General Description

Thanks to highly sensitive triggering levels, the 0.8 A P0102DN SCR thyristor is suitable for all applications where available gate current is limited. This device offers a high blocking voltage of 400 V, ideal for applications like interrupters circuits in 110 V mains regions. The surface mount SO.
