S10A015 - RF & MICROWAVE TRANSISTORS

S10A015 Description

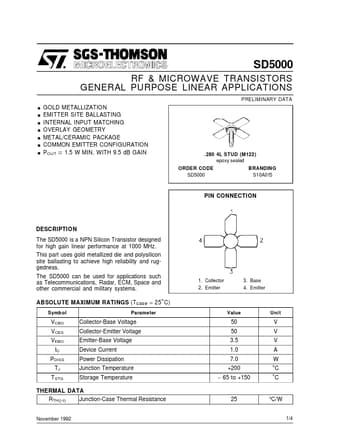

SD5000 RF & MICROWAVE TRANSISTORS GENERAL PURPOSE LINEAR APPLICATIONS *..PRELIMINARY DATA GOLD METALLIZATION EMITTER SITE BALLASTING INTE.
The SD5000 is a NPN Silicon Transistor designed for high gain linear performance at 1000 MHz.

S10A015 Applications

* . . PRELIMINARY DATA GOLD METALLIZATION EMITTER SITE BALLASTING INTERNAL INPUT MATCHING OVERLAY GEOMETRY METAL/CERAMIC PACKAGE COMMON EMITTER CONFIGURATION P OUT = 1.5 W MIN. WITH 9.5 dB GAIN .280 4L STUD (M122) epoxy sealed ORDER CODE SD5000 BRANDING S10A015 PIN CONNECTION DESCRIPTIO
