S10A

10A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part Advanced Thermal Solutions Inc ATS-10A-117-C2-R0 HEATSINK 45X45X10MM XCUT T766 DigiKey 25 950 units
$3.8

S10A Datasheet (38.28 KB)

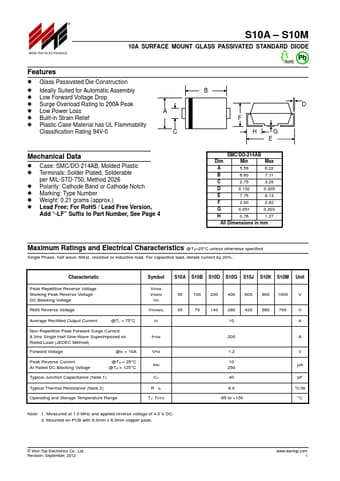

Preview of S10A PDF

Datasheet Details

Part number:

S10A

Manufacturer:

WON-TOP

File Size:

38.28 KB

Description:

10a surface mount glass passivated standard diode.

S10A Features

* Glass Passivated Die Construction

* Ideally Suited for Automatic Assembly

* Low Forward Voltage Drop

* Surge Overload Rating to 200A Peak

* Low Power Loss

* Built-in Strain Relief

* Plastic Case Material has UL Flammability Classification Rating 94V-0 A C B F HG E D
