S10G, S10A-WON - 10A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE

S10G Description

® WON-TOP ELECTRONICS S10A * S10M 10A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE Pb .

S10G Features

* Glass Passivated Die Construction
* Ideally Suited for Automatic Assembly
* Low Forward Voltage Drop
* Surge Overload Rating to 200A Peak
* Low Power Loss
* Built-in Strain Relief
* Plastic Case Material has UL Flammability Classification Rating 94V-0 A C B F HG E D

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: S10G, S10A-WON. Please refer to the document for exact specifications by model.

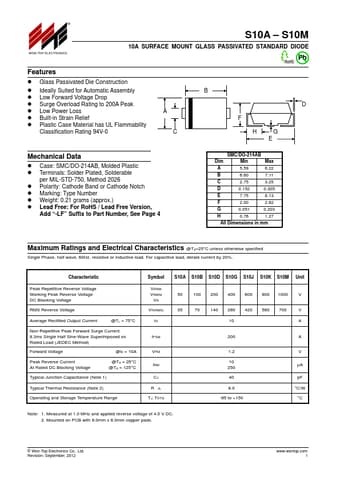

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S10G, S10A-WON
Manufacturer
WON-TOP
File Size
38.28 KB
Datasheet
S10A-WON-TOP.pdf
Description
10A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE
Note
This datasheet PDF includes multiple part numbers: S10G, S10A-WON.
Please refer to the document for exact specifications by model.
