S10M

10A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Klein Tools Inc S10M NUT DRIVER HEX SKT 5/16" 6.63" DigiKey 0 0
$0

S10M Datasheet (38.28 KB)

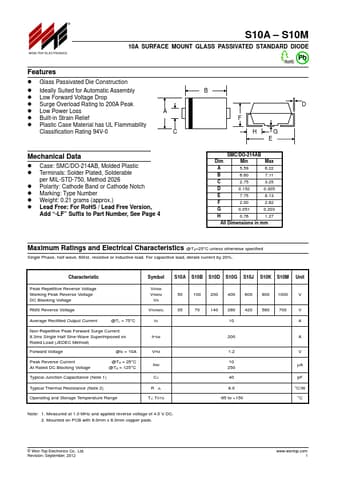

Preview of S10M PDF

Datasheet Details

Part number:

S10M

Manufacturer:

WON-TOP

File Size:

38.28 KB

Description:

10a surface mount glass passivated standard diode.

S10M Features

* Glass Passivated Die Construction

* Ideally Suited for Automatic Assembly

* Low Forward Voltage Drop

* Surge Overload Rating to 200A Peak

* Low Power Loss

* Built-in Strain Relief

* Plastic Case Material has UL Flammability Classification Rating 94V-0 A C B F HG E D
