SD1274-01

RF POWER BIPOLAR TRANSISTORS

SD1274-01 Features

* SUMMARY

* 160 MHz

* 13.6 VOLTS

* COMMON EMITTER

* POUT = 30 W MIN. WITH 10 dB GAIN Figure 1. Package DESCRIPTION The SD1274-01 is a 13.6 V Class C epitaxial silicon NPN planar transistor designed primarily for VHF communications. The SD1274-01 utilizes an emitter ballasted die geom

SD1274-01 General Description

The SD1274-01 is a 13.6 V Class C epitaxial silicon NPN planar transistor designed primarily for VHF communications. The SD1274-01 utilizes an emitter ballasted die geometry to withstand severe load mismatch conditions. .380 4L FL (M113) epoxy sealed Figure 2. Pin Connection Table 1. Order Codes .

SD1274-01 Datasheet (72.93 KB)

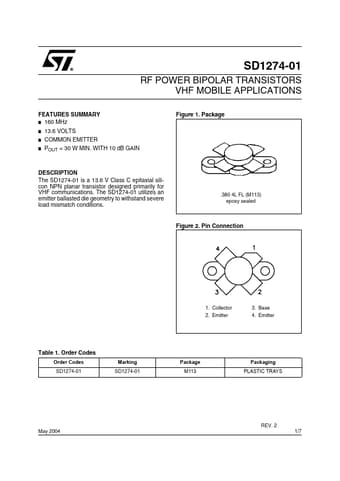

Preview of SD1274-01 PDF

Datasheet Details

Part number:

SD1274-01

Manufacturer:

STMicroelectronics ↗

File Size:

72.93 KB

Description:

Rf power bipolar transistors.
