SD1271P6W - TVS Diode

SD1271P6W Description

SD127 1P6W 1-Line Uni-directional TVS Diode .

SD1271P6W Features

* Ultra low leakage: nA level
* Operating voltage: 12V
* Low clamping voltage
* 2-pin leadless package
* Complies with following standards:
* IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
* IEC61000-4-4 (EFT) 80A (5/50ns)

SD1271P6W Applications

* Dimensions DFN1610-2 Pin Configuration
* Mobile Phones and Accessories
* Battery Protection
* USB VBus
* Power Line Protection
* Hand Held Portable Applications Mechanical Characteristics
* Package: DFN1610-2
* Lead Finish: NiPdAu
* Case Material: “Green” Molding C

📥 Download Datasheet

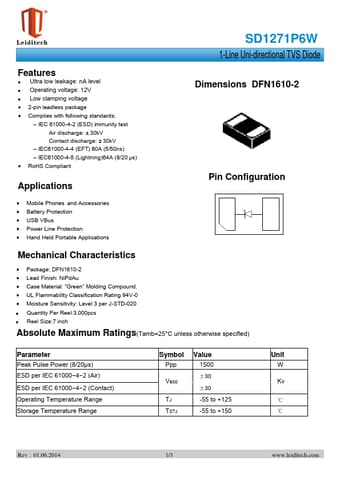

Preview of SD1271P6W PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SD1271P6W
Manufacturer
Leiditech
File Size
3.07 MB
Datasheet
SD1271P6W-Leiditech.pdf
Description
TVS Diode
