SD1201P4-3 - TVS Diode

SD1201P4-3 Description

SD1201P4-3 1-Line High Power TVS Diode .

SD1201P4-3 Features

* 5400W peak pulse power (8/20
* Low leakage: nA level
* Low operating voltage: 12V
* Ultra low clamping voltage
* One power line protects
* Complies with following standards:
* IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV

SD1201P4-3 Applications

* Cell phone handsets and accessories
* Personal digital assistants (PDA’s)
* Notebooks, desktops, and servers
* Portable instrumentation
* Cordless phones
* Digital cameras
* Peripherals MP3 players Mechanical Characteristics
* Package: DFN2020-3
* Lead Finish: N

📥 Download Datasheet

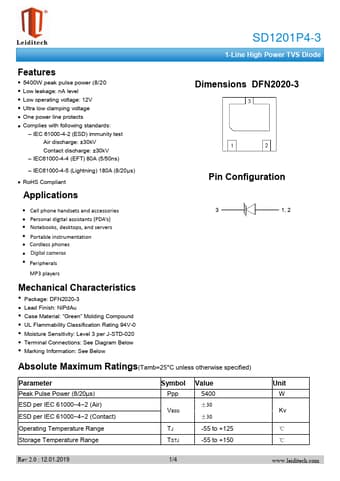

Preview of SD1201P4-3 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SD1201P4-3
Manufacturer
Leiditech
File Size
1.67 MB
Datasheet
SD1201P4-3-Leiditech.pdf
Description
TVS Diode
