SM6T100CA, SM6T - 600W TVS

STMicroelectronics

SM6T100CA Datasheet Preview — This datasheet PDF includes multiple part numbers: SM6T100CA, SM6T. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SM6T100CA, SM6T
Manufacturer	STMicroelectronics ↗
File Size	521.94 KB
Description	600W TVS

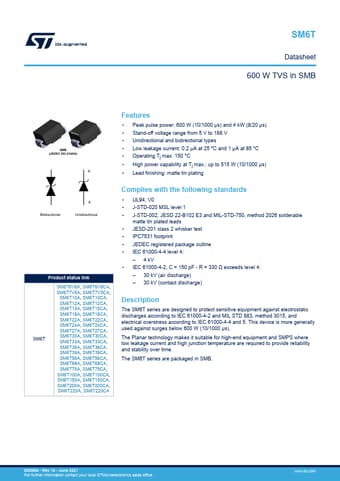

Datasheet	SM6T-STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: SM6T100CA, SM6T. Please refer to the document for exact specifications by model.

SM6T100CA Product details

Description

The SM6T series are designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2 and MIL STD 883, method 3015, and electrical overstress according to IEC 61000-4-4 and 5.

Features

Peak pulse power: 600 W (10/1000 μs) and 4 kW (8/20 μs).
Stand-off voltage range from 5 V to 188 V.
Unidirectional and bidirectional types.
Low leakage current: 0.2 μA at 25 °C and 1 μA at 85 °C.
Operating Tj max: 150 °C.
High power capability at Tj max. : up to 515 W (10/1000 µs) K.
Lead finishing: matte tin plating Bidirectional A Unidirectional Product status link SM6T SM6T6V8A, SM6T6V8CA, SM6T7V5A, SM6T7V5CA, SM6T10A.
