SM6T100C, SM6T6.8 - SURFACE MOUNT TRANSIENT VOLTAGE SUPPESSOR DIODE

SunMate

Datasheet Details

Part number	SM6T100C, SM6T6.8
Manufacturer	SunMate
File Size	1.51 MB
Description	SURFACE MOUNT TRANSIENT VOLTAGE SUPPESSOR DIODE

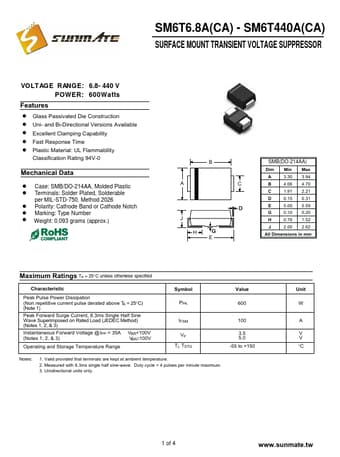

Datasheet	SM6T6.8-SunMate.pdf
Note	This datasheet PDF includes multiple part numbers: SM6T100C, SM6T6.8. Please refer to the document for exact specifications by model.

! Glass Passivated Die Construction ! Uni- and Bi-Directional Versions Available ! Excellent Clamping Capability ! Fast Response Time ! Plastic Material: UL Flammability Classification Rating 94V-0 Mechanical Data ! Case: SMB/DO-214AA, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.093 grams (approx. ) B SMB(DO-214AA) Dim Min Max A 3.30 3.94 A C B 4.06 4.70 C 1.91 2.21 D 0.
