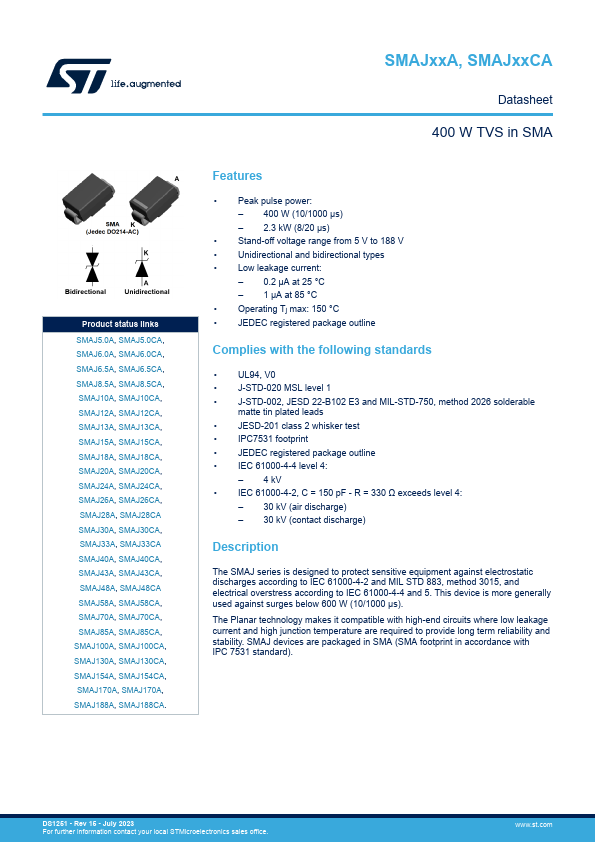

SMAJ6.0A, SMAJ5.0A Datasheet (STMicroelectronics)

SMAJ6.0A, SMAJ5.0A, 400W TVS

The SMAJ series is designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2 and MIL STD 883, method 3015, and electrical overstress according to IEC 61000-4-4 and 5.

This device is more generally used against surges below 600 W (10/1000 μs).

The Planar tech

Product status links SMAJ5.0A, SMAJ5.0CA, SMAJ6.0A, SMAJ6.0CA, SMAJ6.5A, SMAJ6.5CA, SMAJ8.5A, SMAJ8.5CA, SMAJ10A, SMAJ10CA, SMAJ12A, SMAJ12CA, SMAJ13A, SMAJ13CA, SMAJ15A, SMAJ15CA, SMAJ18A, SMAJ18CA, SMAJ20A, SMAJ20CA, SMAJ24A, SMAJ24CA, SMAJ26A, SMAJ26CA, SMAJ28A, SMAJ28CA SMAJ30A, SMAJ30CA, SMAJ33A, SMAJ33CA SMAJ40A, SMAJ40CA, SMAJ43A, SMAJ43CA, SMAJ48A, SMAJ48CA SMAJ58A, SMAJ58CA, SMAJ70A, SMAJ70CA, SMAJ85A, SMAJ85CA, SMAJ100A, SMAJ100CA, SMAJ130A, SMAJ130CA, SMAJ154A, SMAJ154CA, SMAJ170A, SM

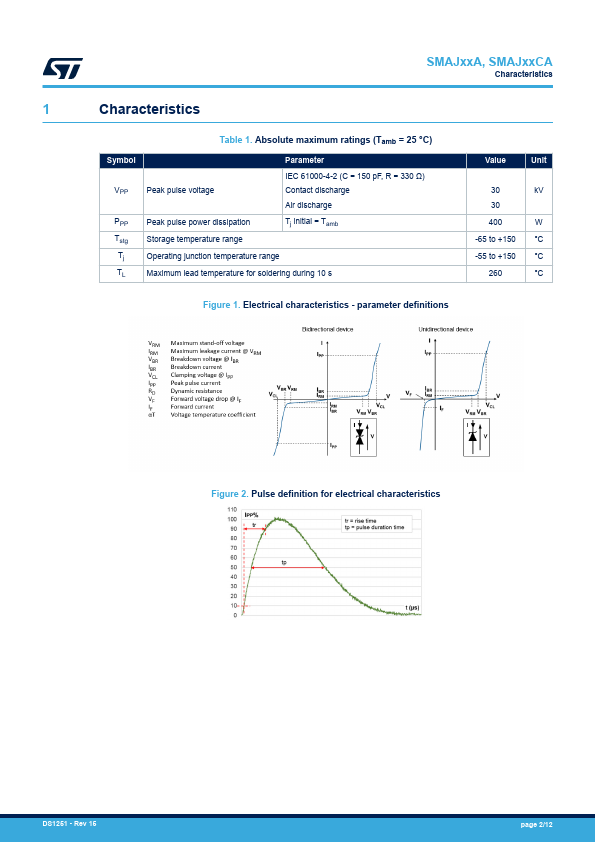

SMAJ6.0A Features

* Peak pulse power:

* 400 W (10/1000 μs)

* 2.3 kW (8/20 μs)

* Stand-off voltage range from 5 V to 188 V

* Unidirectional and bidirectional types

* Low leakage current:

* 0.2 µA at 25 °C

* 1 μA at 85 °C

* Operating Tj max: 150 °C
