* Peak pulse power:
* 400 W (10/1000 μs)
* 2.3 kW (8/20 μs)
* Stand-off voltage range from 5 V to 188 V
* Unidirectional and bidirectional types
* Low leakage current:
* 0.2 µA at 25 °C
* 1 μA at 85 °C
* Operating Tj max: 150 °C
SMAJ6.5A Datasheet (883.19 KB)
SMAJ6.5A
883.19 KB
400w tvs.

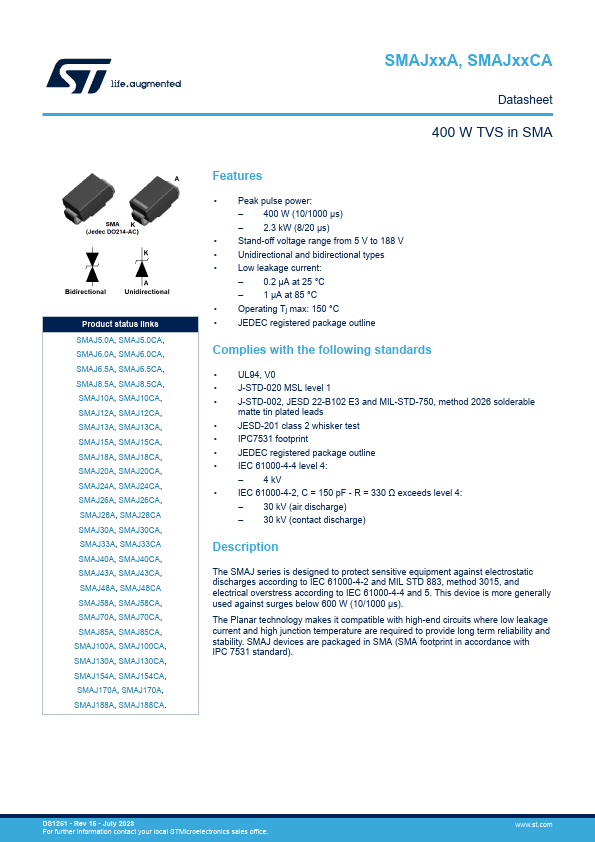

SMAJxxA, SMAJxxCA
Datasheet
400 W TVS in SMA
Product status links
Unidirectional
Bidirectional
SMAJ5.0A
SMAJ5.0CA
SMAJ6.0A
SMAJ6.0CA
SMAJ6.5A
.
