SMCJ10A, SMCJ5.0A Datasheet - STMicroelectronics

SMCJ10A Transil

The SMCJ Transil series has been designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2, and MIL STD 883, method 3015, and electrical over stress according to IEC 61000-4-4 and 5. These devices are more generally used against surges below 1500 W (10/1000 .

SMCJ10A Features

* Peak pulse power:

* 1500 W (10/1000 μs)

* 10 kW (8/20 μs) Stand off voltage range: from 5 V to 188 V Unidirectional and bidirectional types Low leakage current:

* 0.2 μA at 25 °C

* 1 μA at 85 °C Operating Tj max: 150 °C High power capability at Tj max:

SMCJ5.0A-STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: SMCJ10A, SMCJ5.0A. Please refer to the document for exact specifications by model.

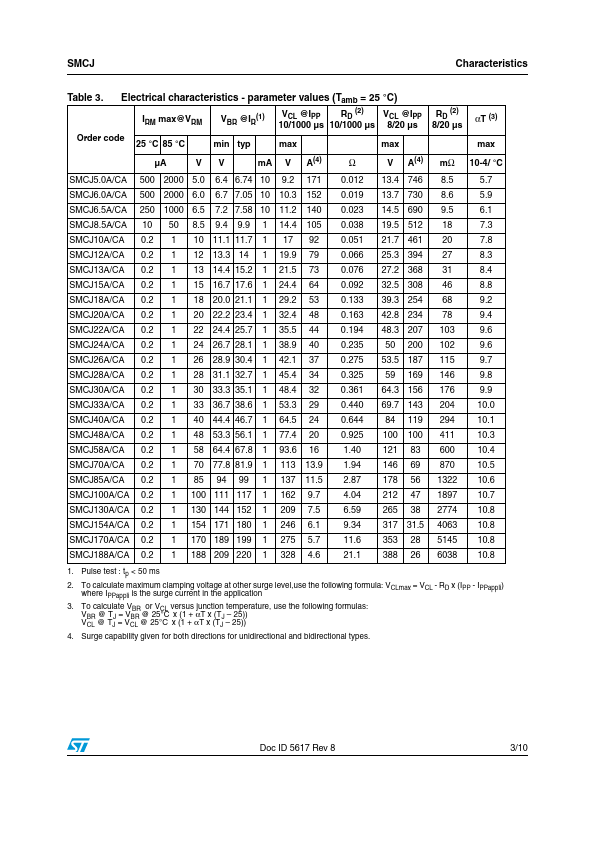

SMCJ10A Datasheet Preview Page 2 SMCJ10A Datasheet Preview Page 3

Datasheet Details

Part number:

SMCJ10A, SMCJ5.0A

Manufacturer:

STMicroelectronics ↗

File Size:

108.66 KB

Description:

Transil.

Note:

This datasheet PDF includes multiple part numbers: SMCJ10A, SMCJ5.0A.
Please refer to the document for exact specifications by model.
