ST7-STICK In-Circuit Programmer

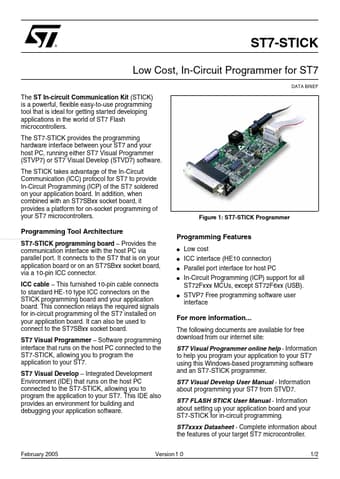

® ST7-STICK Low Cost, In-Circuit Programmer for ST7 DATA BRIEF The ST In-circuit Communication Kit (STICK) is a powerful, flexible easy-to-use programming tool that is ideal for getting started developing applications in the world of ST7 Flash microcontrollers. The ST7-STICK provides the programming hardware interface between your ST7 and your host PC, running either ST7 Visual Programmer (STVP7) or ST7 Visual Develop (STVD7) software. The STICK takes advantage of the In-Circuit Communication .

ST7-STICK Features

* ST7-STICK programming board

* Provides the communication interface with the host PC via parallel port. It connects to the ST7 that is on your application board or on an ST7SBxx socket board, via a 10-pin ICC connector. ICC cable

* This furnished 10-pin cable
