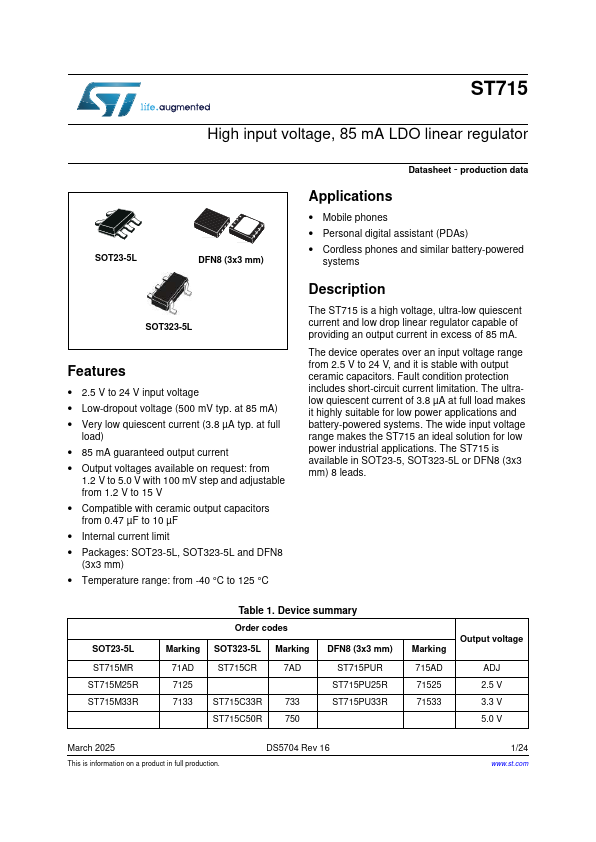

ST715 Datasheet, Regulator, STMicroelectronics

ST715 Features

• Regulator
• 2.5 V to 24 V input voltage
• Low-dropout voltage (500 mV typ. at 85 mA)
• Very low quiescent current (3.8 µA typ. at full load)
• 85 mA guaranteed out

PDF File Details

Part number:

ST715

Manufacturer:

STMicroelectronics ↗

File Size:

598.53kb

Download:

📄 Datasheet

Description:

85ma ldo linear regulator. The ST715 is a high voltage, ultra low quiescent current and low drop linear regulator capable of providing an output current in exce

ST715 Application

• Applications
• Mobile phones
• Personal digital assistant (PDAs)
• Cordless phones and similar battery-powered systems SOT3
