STA8135GA - GNSS precise engine receiver

STMicroelectronics

STA8135GA Datasheet Preview — Preview of STA8135GA PDF

Datasheet Details

Part number	STA8135GA
Manufacturer	STMicroelectronics ↗
File Size	867.97 KB
Description	GNSS precise engine receiver
Datasheet	STA8135GA-STMicroelectronics.pdf

STA8135GA Product details

Description

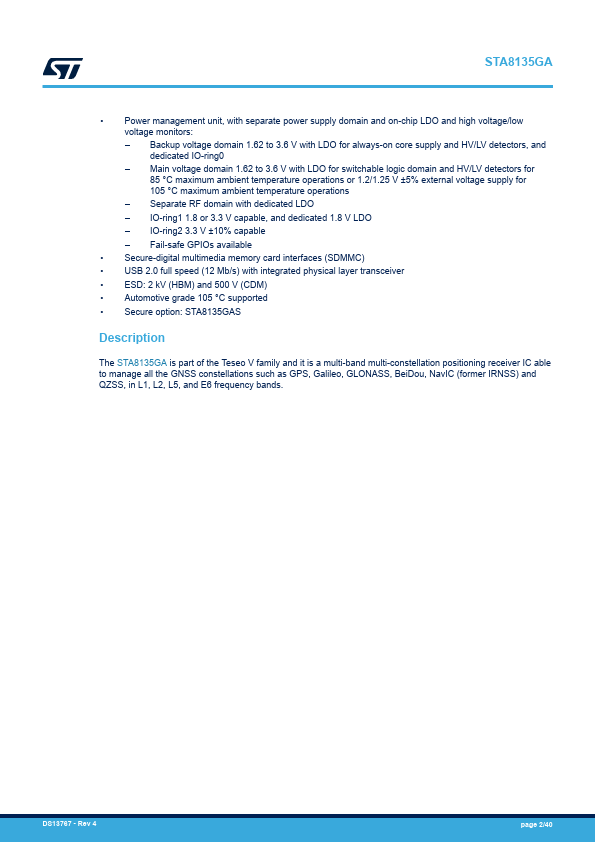

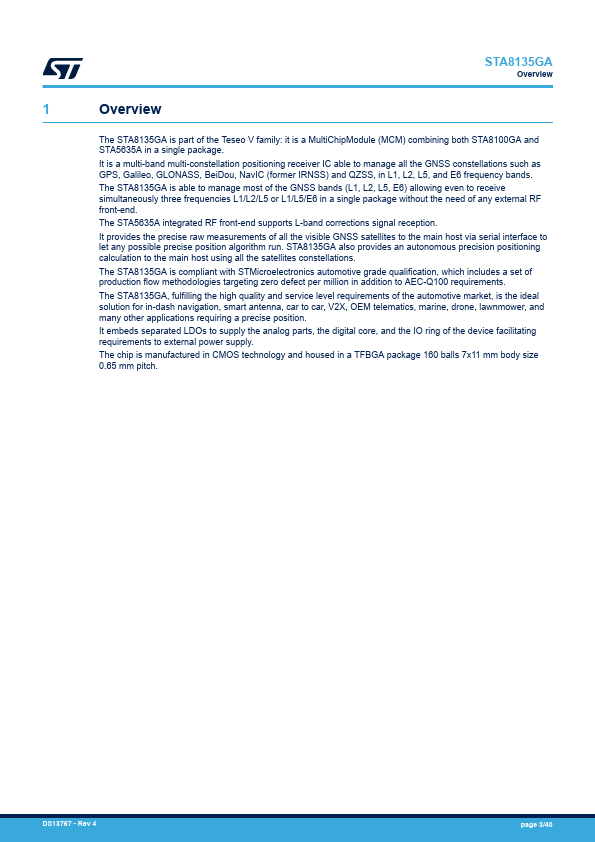

The STA8135GA is part of the Teseo V family and it is a multi-band multi-constellation positioning receiver IC able to manage all the GNSS constellations such as GPS, Galileo, GLONASS, BeiDou, NavIC (former IRNSS) and QZSS, in L1, L2, L5, and E6 frequency bands.

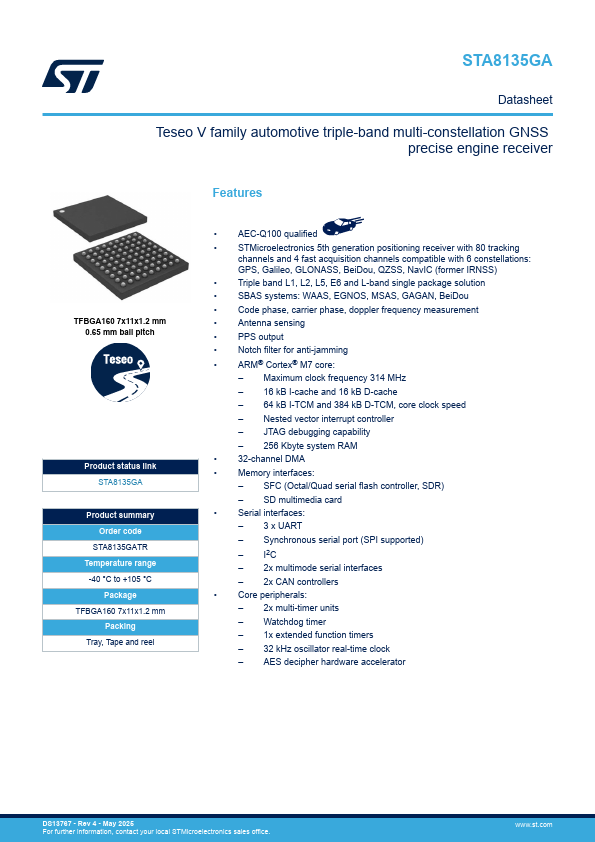

Features

TFBGA160 7x11x1.2 mm 0.65 mm ball pitch Product status link STA8135GA Product summary Order code STA8135GATR Temperature range -40 °C to +105 °C Package TFBGA160 7x11x1.2 mm Packing Tray, Tape and reel.
AEC-Q100 qualified.
STMicroelectronics 5th generation positioning receiver with 80 tracking channels and 4 fast acquisition channels compatible with 6 constellations: GPS, Galileo,.
