STA801M (STA801M / STA802M) 2-Output Separate Excitation Switching Type

Sanken electric

Description

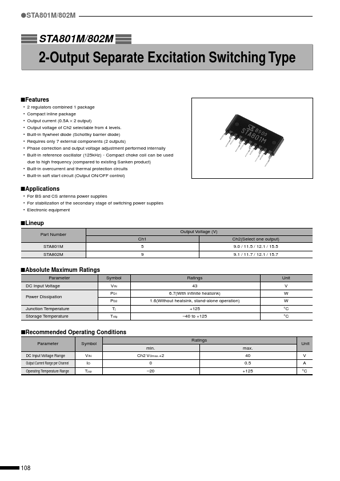

qSTA801M/802M STA801M/802M 2-Output Separate Excitation Switching Type s.

📥 Download Datasheet

STA801M Datasheet Preview — Preview of STA801M PDF

Datasheet Specifications

Part number: STA801M
Manufacturer: Sanken ↗ electric
File Size: 82.50 KB
Datasheet: STA801M_Sankenelectric.pdf
Description: (STA801M / STA802M) 2-Output Separate Excitation Switching Type

Features

* 2 regulators combined 1 package Compact inline package Output current (0.5A × 2 output) Output voltage of Ch2 selectable from 4 levels. Built-in flywheel diode (Schottky barrier diode) Requires only 7 external components

Applications

* For BS and CS antenna power supplies
* For stabilization of the secondary stage of switching power supplies
* Electronic equipment sLineup Part Number Ch1 STA801M STA802M 5 9 Output Voltage (V) Ch2(Select one output) 9.0 / 11.5 / 12.1 / 15.5 9.1 / 11.7 / 12.1 / 15.7 sAbso
