STA303A Datasheet - Sanken electric

STA303A NPN Darlington General purpose/3-phase motor drive

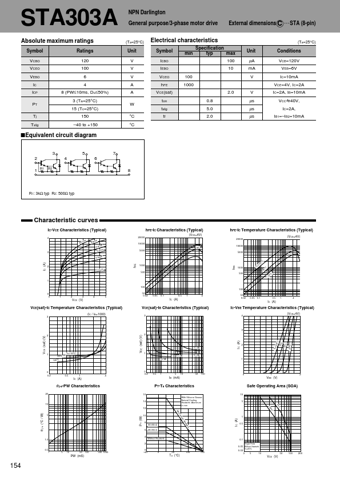

STA303A NPN Darlington General purpose/3-phase motor drive External dimensions C STA (8-pin) Absolute maximum ratings Symbol Ratings VCBO VCEO VEBO IC ICP PT Tj Tstg 120 100 6 4 8 (PW≤10ms, Du≤50%) 3 (Ta=25°C) 15 (Tc=25°C) 150 40 to +150 sEquivalent circuit diagram (Ta=25°C) Electrical characteristics Specification Unit Symbol min typ max Unit V ICBO 100 µA V IEBO 10 mA V VCEO 100 V A hFE 1000 A VCE(sat) 2.0 V ton W tstg .
