STA304A Datasheet - Sanken electric

STA304A NPN Darlington 3-phase motor drive

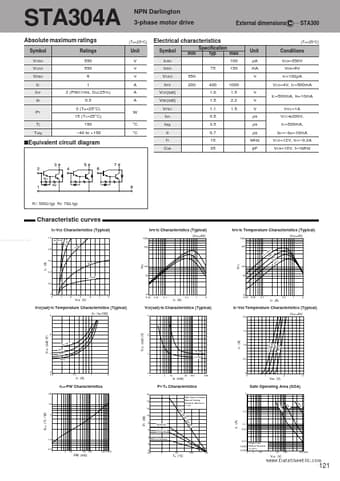

STA304A Absolute maximum ratings Symbol VCBO VCEO VEBO IC ICP IB PT Tj Tstg Ratings 550 550 6 1 2 (PW≤1ms, Du≤25%) 0.5 3 (Ta=25°C) 15 (Tc=25°C) 150 40 to +150 NPN Darlington 3-phase motor drive (Ta=25°C) External dimensions C STA300 (Ta=25°C) Electrical characteristics Symbol ICBO IEBO VCEO hFE VCE(sat) VBE(sat) VFEC ton tstg tf fT Cob 550 200 400 1.0 1.5 1.1 0.5 3.5 0.7 15 35 1000 1.5 2.2 1.5 V V V 75 Specification min typ max 100 150 Unit Unit V V V A.
