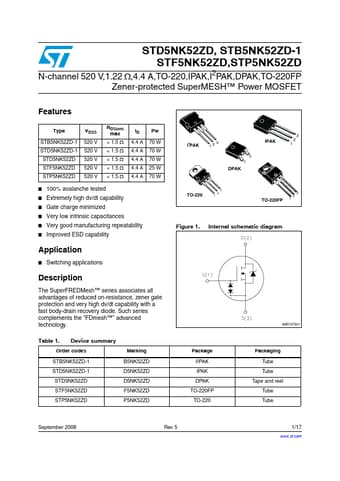

STD5NK52ZD-1, STD5NK52ZD - N-Channel Power MOSFET

STMicroelectronics

STD5NK52ZD-1 Datasheet Preview — This datasheet PDF includes multiple part numbers: STD5NK52ZD-1, STD5NK52ZD. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	STD5NK52ZD-1, STD5NK52ZD
Manufacturer	STMicroelectronics ↗
File Size	509.28 KB
Description	N-Channel Power MOSFET
Datasheet	STD5NK52ZD-STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STD5NK52ZD-1, STD5NK52ZD. Please refer to the document for exact specifications by model.

STD5NK52ZD-1 Product details

Description

The SuperFREDMesh™ series associates all advantages of reduced on-resistance, zener gate protection and very high dv/dt capability with a fast body-drain recovery diode.

Features

Type VDSS STB5NK52ZD-1 STD5NK52ZD-1 STD5NK52ZD STF5NK52ZD STP5NK52ZD 520 V 520 V 520 V 520 V 520 V RDS(on) max < 1.5 Ω < 1.5 Ω < 1.5 Ω < 1.5 Ω < 1.5 Ω ID Pw 4.4 A 70 W 4.4 A 70 W 4.4 A 70 W 4.4 A 25 W 4.4 A 70 W.
100% avalanche tested.
Extremely high dv/dt capability.
Gate charge minimized.
Very low intrinsic capacitances.
Very good manufacturing repeatability.
Improved ESD capability.
