STD5NK52ZD Datasheet - STMicroelectronics

STD5NK52ZD - N-Channel Power MOSFET

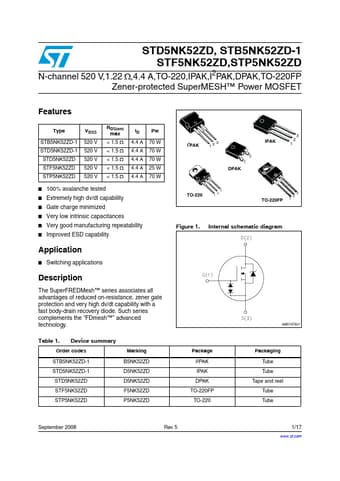

The SuperFREDMesh™ series associates all advantages of reduced on-resistance, zener gate protection and very high dv/dt capability with a fast body-drain recovery diode. Such series complements the “FDmesh™” advanced technology. Table 1. Device summary Order codes Marking STB5NK52ZD-1 STD5NK52ZD.

STD5NK52ZD Features

* Type VDSS STB5NK52ZD-1 STD5NK52ZD-1 STD5NK52ZD STF5NK52ZD STP5NK52ZD 520 V 520 V 520 V 520 V 520 V RDS(on) max < 1.5 Ω < 1.5 Ω < 1.5 Ω < 1.5 Ω < 1.5 Ω ID Pw 4.4 A 70 W 4.4 A 70 W 4.4 A 70 W 4.4 A 25 W 4.4 A 70 W

* 100% avalanche tested

* Extremely high dv/dt capability

* Gate char
