STELPD01 Datasheet - STMicroelectronics

STELPD01 Electronic load switch

The STELPD01 is an integrated electronic power switch for power rail protection applications. It is able to precisely detect and react to overcurrent and overvoltage conditions. When an overload condition occurs, the device goes into an open state, disconnecting the load from the power supply. An ex.

STELPD01 Features

* Wide input voltage range: 4 V to 18 V

* 17.5 V typical output overvoltage clamp

* Absolute maximum voltage of 23.5 V

* 5 A maximum continuous current

* Adjustable current limit with circuit breaker functionality

* Thermal protection

* Input u

STELPD01 Datasheet (1.38 MB)

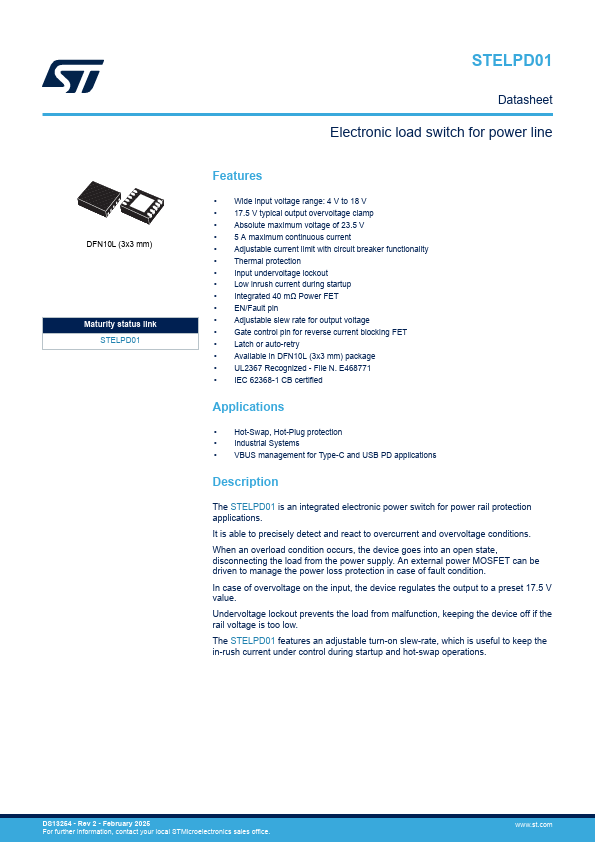

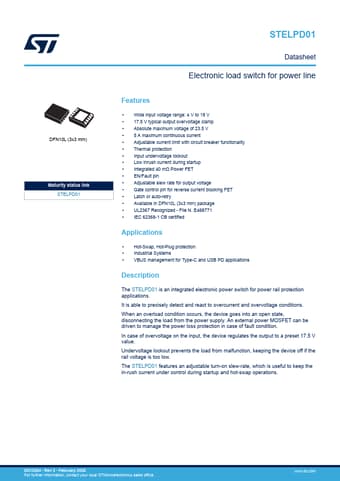

Preview of STELPD01 PDF

Datasheet Details

Part number:

STELPD01

Manufacturer:

STMicroelectronics ↗

File Size:

1.38 MB

Description:

Electronic load switch.

📁 Related Datasheet

STEL-1175 32-Bit Resolution CMOS Phase Modulated Numerically Controlled Oscillator (Intel)

STEL-2000A Fast Acquisition Burst Processor (Intel Corporation)

STEL-2000A Burst Processor (Stanford Telecommunications)

STEL-2020 STEL-2020 (Stanford)

STEL-2060 45Mbps Viterbi Decoder (Stanford Telecommunications)

STEL-2060C 45Mbps Viterbi Decoder (Intel)

STEL-2060CR 45Mbps Viterbi Decoder (Intel)

STEL-5268 STEL-5268 (Stanford Telecommunications)

STEL-5269 Convolutional Encoder Viterbi Decoder (Stanford Telecommunications)

STEL-5269+512 Convolutional Encoder Viterbi Decoder (Intel)

TAGS

STELPD01 Electronic load switch STMicroelectronics

Image Gallery

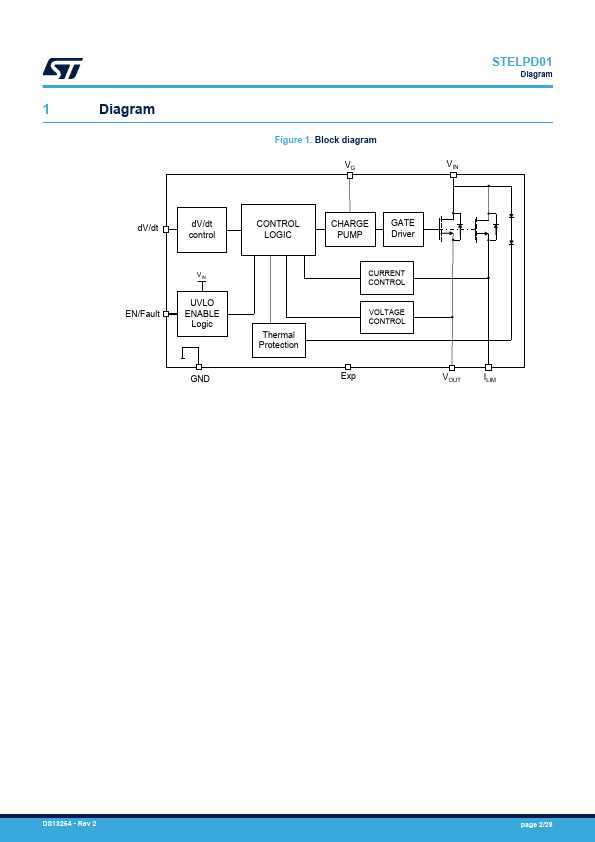

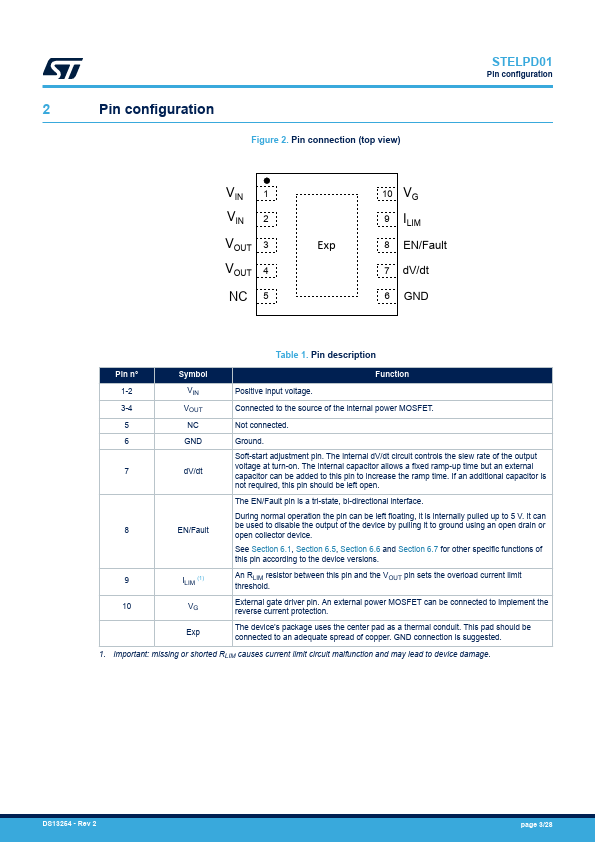

STELPD01 Datasheet Preview Page 2 STELPD01 Datasheet Preview Page 3
