STF7NM60N

N-channel Power MOSFET

STF7NM60N Features

* Type STD7NM60N STF7NM60N STP7NM60N STU7NM60N

* VDSS @ TJmax RDS(on) max ID Pw 2 3 3 1 2 650 V < 0.9 Ω 4.7 A 45 W 20 W 45 W 45 W 1 IPAK TO-220 100% avalanche tested Low input capacitance and gate charge Low gate input resistance 3 1 3 2 DPAK 1 TO-220FP Application

STF7NM60N General Description

This second generation of MDmesh™ technology, applies the benefits of the multiple drain process to STMicroelectronics’ well-known PowerMESH™ horizontal layout structure. The resulting product offers improved on-resistance, low gate charge, high dv/dt capability and excellent avalanche www.DataSheet.

STF7NM60N Datasheet (576.44 KB)

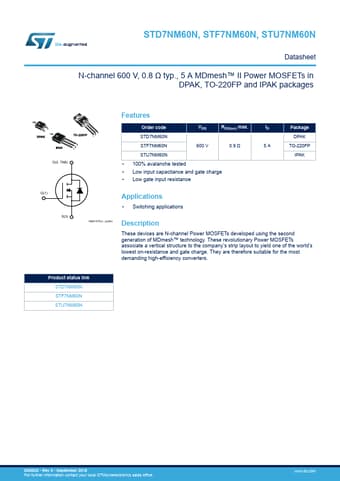

Preview of STF7NM60N PDF

Datasheet Details

Part number:

STF7NM60N

Manufacturer:

STMicroelectronics ↗

File Size:

576.44 KB

Description:

N-channel power mosfet.
STD7NM60N, STF7NM60N STP7NM60N, STU7NM60N N-channel 600 V, 4.7 A, DPAK, TO-220FP, TO-220, IPAK second generation MDmesh™ Power MOSFET Preliminary data.
