STFI13NM60N - N-Channel Power MOSFET

STMicroelectronics

📥 Download Datasheet

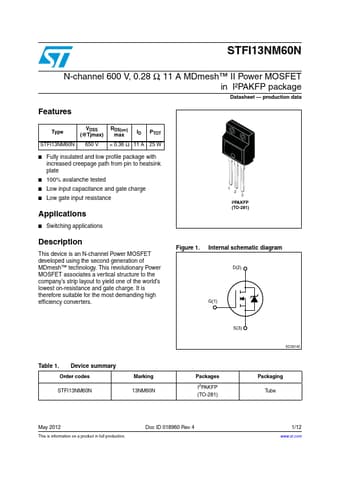

STFI13NM60N Datasheet Preview — Preview of STFI13NM60N PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STFI13NM60N
Manufacturer	STMicroelectronics
File Size	776.68 KB
Description	N-Channel Power MOSFET
Datasheet	STFI13NM60N-STMicroelectronics.pdf

STFI13NM60N Product details

Description

This device is an N-channel Power MOSFET developed using the second generation of MDmesh™ technology.

Features

Type VDSS RDS(on) (@Tjmax) max ID PTOT STFI13NM60N 650 V < 0.36 Ω 11 A 25 W.
Fully insulated and low profile package with increased creepage path from pin to heatsink plate.
100% avalanche tested.
Low input capacitance and gate charge.
Low gate input resistance.
