STFU15NM65N

N-channel MOSFET

STFU15NM65N Features

* Order code STFU15NM65N VDS 650 V RDS(on) max 0.38 Ω ID 12 A

* 100% avalanche tested

* Low input capacitance and gate charge

* Low gate input resistance Applications

* Switching applications Description This device is an N-channel Power MOSFET developed using the second generation

STFU15NM65N General Description

This device is an N-channel Power MOSFET developed using the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most .

STFU15NM65N Datasheet (801.83 KB)

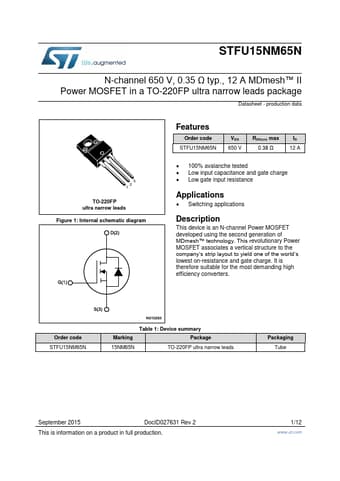

Preview of STFU15NM65N PDF

Datasheet Details

Part number:

STFU15NM65N

Manufacturer:

STMicroelectronics ↗

File Size:

801.83 KB

Description:

N-channel mosfet.
STFU15NM65N N-channel 650 V, 0.35 Ω typ., 12 A MDmesh™ II Power MOSFET in a TO-220FP ultra narrow leads package Datasheet - production data 3 2 1 TO.
