STFU10N80K5 Datasheet, Mosfet, STMicroelectronics

STFU10N80K5 Features

  • Mosfet Order code STF10N80K5 STFU10N80K5 VDS 800 V RDS(on) max. 0.600 Ω ID PTOT 9 A 30 W
  • Industry’s lowest RDS(on) x area
  • Industry’s best figure of merit (FoM)

PDF File Details

Part number:

STFU10N80K5

Manufacturer:

STMicroelectronics ↗

File Size:

672.30kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. These very high voltage N-channel Power MOSFETs are designed using MDmesh™ K5 technology based on an innovative proprietary vertical

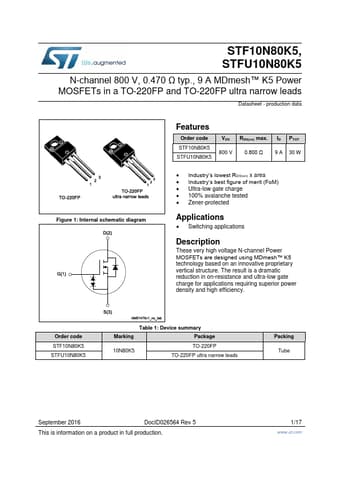

Datasheet Preview: STFU10N80K5 📥 Download PDF (672.30kb)
Page 2 of STFU10N80K5 Page 3 of STFU10N80K5

STFU10N80K5 Application

  • Applications
  • Switching applications Description These very high voltage N-channel Power MOSFETs are designed using MDmesh™ K5 technology b
