STFU15NM65N N-Channel MOSFET

INCHANGE

Description

isc N-Channel Mosfet Transistor *.

📥 Download Datasheet

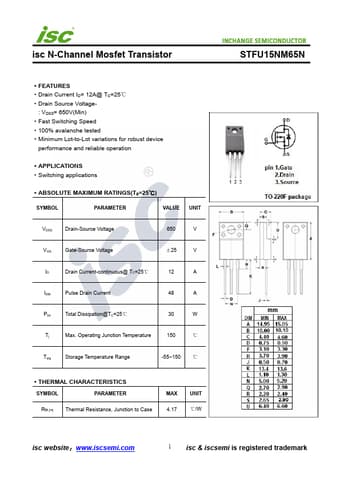

STFU15NM65N Datasheet Preview — Preview of STFU15NM65N PDF

Datasheet Specifications

Part number: STFU15NM65N
Manufacturer: INCHANGE
File Size: 245.43 KB
Datasheet: STFU15NM65N-INCHANGE.pdf
Description: N-Channel MOSFET

Features

* Drain Current ID= 12A@ TC=25℃
* Drain Source Voltage- : VDSS= 650V(Min)
* Fast Switching Speed
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

Applications

* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 650 V VGS Gate-Source Voltage ±25 V ID Drain Current-continuous@ TC=25℃ 12 A IDM Pulse Drain Current 48 A Ptot Total Dissipation@TC=25℃ 30 W Tj Max. Opera
