STF100N10F7 - N-Channel MOSFET

STF100N10F7 Description

Isc N-Channel MOSFET Transistor STF100N10F7 *.

STF100N10F7 Features

* With TO-220F package
* Low input capacitance and gate charge
* Low gate input resistance
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

STF100N10F7 Applications

* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 100 V VGSS Gate-Source Voltage ±20 V ID Drain Current-Continuous@TC=25℃ TC=100℃ 45 32 A IDM Drain Current-Single Pulsed 180 A PD Total Dissipation @TC=25℃ 3

📥 Download Datasheet

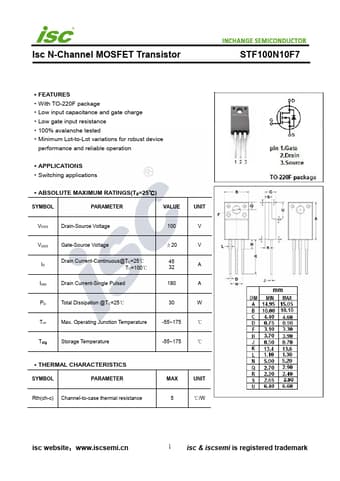

Preview of STF100N10F7 PDF
datasheet Preview Page 2

Datasheet Details

Part number
STF100N10F7
Manufacturer
INCHANGE
File Size
242.24 KB
Datasheet
STF100N10F7-INCHANGE.pdf
Description
N-Channel MOSFET
