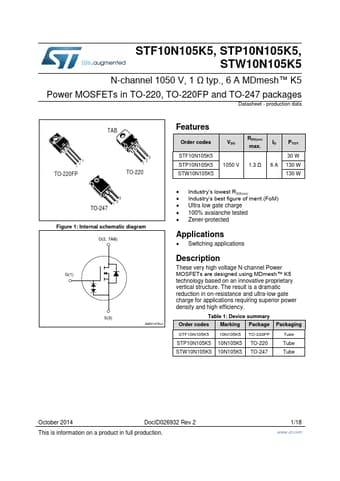

STF10N105K5 Datasheet - STMicroelectronics

STF10N105K5 N-channel Power MOSFET

These very high voltage N-channel Power MOSFETs are designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power density and high efficiency. Table .

STF10N105K5 Features

* Order codes STF10N105K5 STP10N105K5 STW10N105K5 VDS 1050 V RDS(on) max. ID PTOT 1.3 Ω 30 W 6 A 130 W 130 W 3 12 TO-247 Figure 1: Internal schematic diagram D(2, TAB) G(1) S(3) AM01476v1

* Industry’s lowest RDS(on)

* Industry’s best figure of merit (FoM)

* Ultra low gate charge
