STF10N95K5 N-channel Power MOSFET

STF10N95K5 Description

STB10N95K5, STF10N95K5, STP10N95K5, STW10N95K5 N-channel 950 V, 0.65 Ω typ., 8 A Zener-protected SuperMESH™ 5 2 Power MOSFETs in D PAK, TO-220FP, TO-2.
These N-channel Zener-protected Power MOSFETs are designed using ST’s revolutionary avalanche-rugged very high voltage SuperMESH™ 5 technology, based.

STF10N95K5 Features

* 3 1 D2PAK TAB 3 2 1 TO-220FP 3 2 1 TO-220 3 2 1 TO-247 Figure 1. Internal schematic diagram ' 7$%
*  6  AM01476v1 Order codes VDS RDS(on) max ID PTOT STB10N95K5 STF10N95K5 950 V STP10N95K5 STW10N95K5 0.8 Ω 130 W 30 W 8A 130 W
* Worldwide best FOM (figure of merit)

📥 Download Datasheet

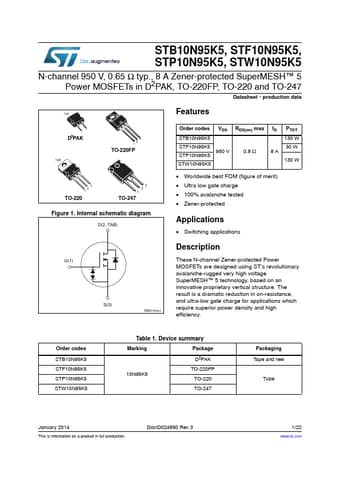

Preview of STF10N95K5 PDF
datasheet Preview Page 2 datasheet Preview Page 3
