STF1045 - SCHOTTKY RECTIFIER

STF1045 Description

Technical Data Data Sheet N1028, Rev.B ST1045 STB1045 STD1045 STF1045 ST1045/STB1045/STF1045/STD1045 SCHOTTKY RECTIFIER Applications * Switchi.

STF1045 Features

* 150 C TJ operation
* Center tap configuration
* Ultralow forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliabil

STF1045 Applications

* Switching power supply
* Converters
* Free-Wheeling diodes

📥 Download Datasheet

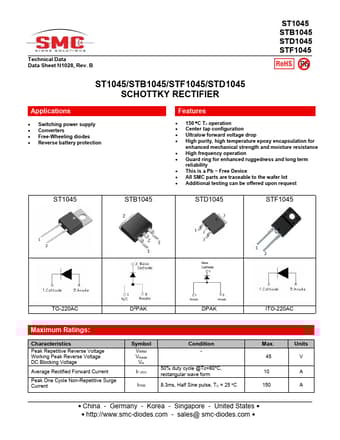

Preview of STF1045 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STF1045
Manufacturer
SMC Diode
File Size
371.84 KB
Datasheet
STF1045-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER
