STF10NM60N

N-Channel Power MOSFET

ST Microelectronics

STF10NM60N Features

* Order code VDS RDS(on) max. ID STF10NM60N 600 V 550 mΩ 10 A

* 100% avalanche tested

* Low input capacitance and gate charge

* Low gate input resistance Applications

* Switching applications Description This device is an N-channel Power MOSFET developed us

STF10NM60N General Description

This device is an N-channel Power MOSFET developed using the second generation of MDmesh technology. This revolutionary Power MOSFET associates a vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most .

STF10NM60N Datasheet (502.72 KB)

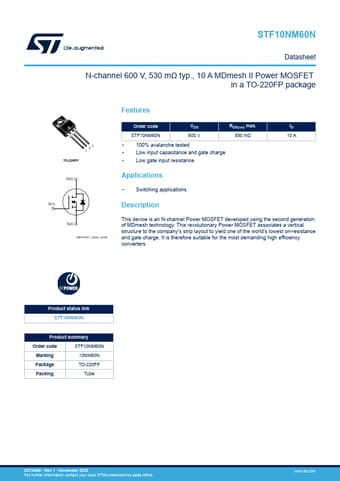

STF10NM60N Datasheet Preview — Preview of STF10NM60N PDF

Datasheet Details

Part number:

STF10NM60N

Manufacturer:

STMicroelectronics ↗

File Size:

502.72 KB

Description:

N-channel power mosfet.
STF10NM60N Datasheet N-channel 600 V, 530 mΩ typ., 10 A MDmesh II Power MOSFET in a TO-220FP package 3 2 1 TO-220FP D(2) G(1) S(3) AM01475v1_noZen_no.
