STF10NM60ND - N-channel Power MOSFET

STF10NM60ND Description

STF10NM60ND Datasheet N-channel 600 V, 570 mΩ typ., 8 A FDmesh II Power MOSFET in a TO-220FP package 3 2 1 TO-220FP D(2) G(1) S(3) AM01475v1_noZen_no.
This FDmesh II Power MOSFET with fast-recovery body diode is produced using MDmesh II technology.

STF10NM60ND Features

* Order code VDS at TJ max. RDS(on) max. ID STF10NM60ND 650 V 600 mΩ 8A
* Fast-recovery body diode
* Low gate charge and input capacitance
* Low on-resistance RDS(on)
* 100% avalanche tested

📥 Download Datasheet

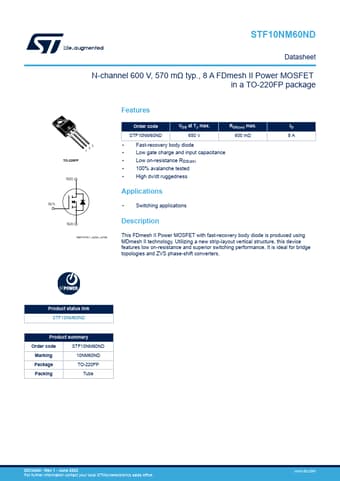

Preview of STF10NM60ND PDF
