STF10N60M2

N-channel Power MOSFET

STF10N60M2 Features

* Order code STF10N60M2 VDS at TJmax. 650 V RDS(on) max. 0.60 Ω ID 7.5 A

* Extremely low gate charge

* Excellent output capacitance (Coss) profile

* 100% avalanche tested

* Zener-protected Applications

* Switching applications Description This device is an

STF10N60M2 General Description

This device is an N-channel Power MOSFET developed using MDmesh M2 technology. Thanks to its strip layout and an improved vertical structure, the device exhibits low on-resistance and optimized switching characteristics, rendering it suitable for the most demanding high efficiency converters. Produ.

STF10N60M2 Datasheet (298.96 KB)

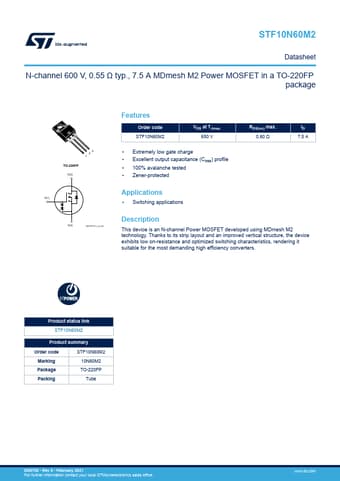

Preview of STF10N60M2 PDF

Datasheet Details

Part number:

STF10N60M2

Manufacturer:

STMicroelectronics ↗

File Size:

298.96 KB

Description:

N-channel power mosfet.
STF10N60M2 Datasheet N-channel 600 V, 0.55 Ω typ., 7.5 A MDmesh M2 Power MOSFET in a TO-220FP package 23 1 TO-220FP D(2) G(1) S(3) AM15572v1_no_tab.
