STF10N65K3

N-channel Power MOSFET

STF10N65K3 Features

* TAB 3 1 D2PAK 3 2 1 TO-220FP TAB I2PAKFP (TO-281) 3 2 1 TO-220 Figure 1. Internal schematic diagram ' 7$% Order codes STB10N65K3 STF10N65K3 STFI10N65K3 STP10N65K3 VDS RDS(on) max ID PTOT 150 W 650 V 1 Ω 10 A 35 W 150 W

* 100% avalanche tested

* Extremely low on-resista

STF10N65K3 General Description

These SuperMESH3™ Power MOSFETs are the result of improvements applied to STMicroelectronics’ SuperMESH™ technology, combined with a new optimized vertical structure. These devices boast an extremely low onresistance, superior dynamic performance and high avalanche capability, rendering them suitabl.

STF10N65K3 Datasheet (682.30 KB)

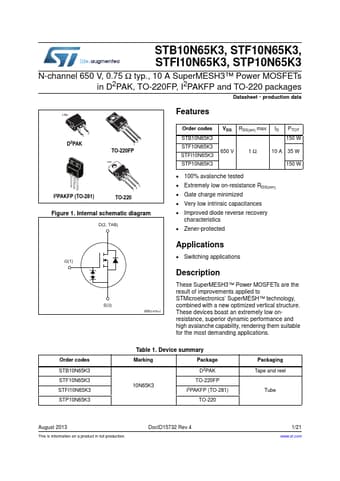

Preview of STF10N65K3 PDF

Datasheet Details

Part number:

STF10N65K3

Manufacturer:

STMicroelectronics ↗

File Size:

682.30 KB

Description:

N-channel power mosfet.
STB10N65K3, STF10N65K3, STFI10N65K3, STP10N65K3 N-channel 650 V, 0.75 Ω typ., 10 A SuperMESH3™ Power MOSFETs in D2PAK, TO-220FP, I2PAKFP and TO-220 pa.
