STF10N80K5 Datasheet - STMicroelectronics

STF10N80K5 - N-CHANNEL POWER MOSFET

This very high voltage N-channel Power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure.

The result is a dramatic reduction in onresistance and ultra-low gate charge for applications requiring superior power density and high efficiency.

Order code

STF10N80K5 Features

* Order code VDS STF10N80K5 800 V RDS(on) max 0.600 Ω ID PTOT 9 A 30 W 3 2 1 TO-220FP Figure 1. Internal schematic diagram D(2) G(1) S(3) AM01476v1

* Industry’s best RDS(on)

* Industry’s best figure of merit (FoM)

* Ultra-low gate charge

* 100% avalanche tested

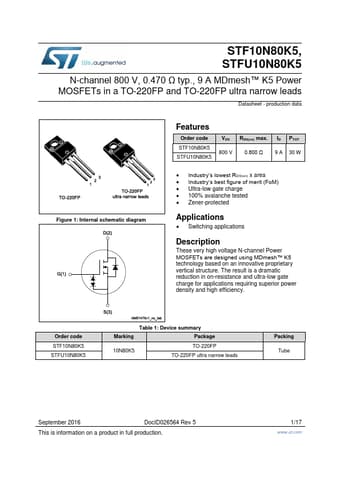

STF10N80K5-STMicroelectronics.pdf

Preview of STF10N80K5 PDF
STF10N80K5 Datasheet Preview Page 2 STF10N80K5 Datasheet Preview Page 3

Datasheet Details

Part number:

STF10N80K5

Manufacturer:

STMicroelectronics ↗

File Size:

672.30 KB

Description:

N-channel power mosfet.
