STF11NM60N

N-channel MOSFET

STF11NM60N Features

* Type STD11NM60N STD11NM60N-1 STF11NM60N STP11NM60N VDSS (@Tjmax) 650V 650V 650V 650V RDS(on)

STF11NM60N General Description

This series of devices is realized with the second generation of MDmesh™ Technology. This revolutionary Power MOSFET associates a new vertical structure to the Company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most demanding hig.

STF11NM60N Datasheet (769.92 KB)

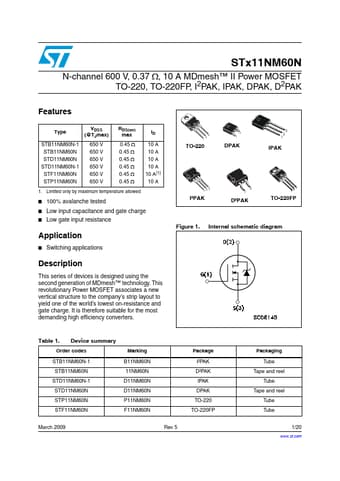

Preview of STF11NM60N PDF

Datasheet Details

Part number:

STF11NM60N

Manufacturer:

STMicroelectronics ↗

File Size:

769.92 KB

Description:

N-channel mosfet.
www.DataSheet4U.com STD11NM60N - STD11NM60N-1 STP11NM60N - STF11NM60N N-channel 600V - 0.37Ω - 10A - TO-220 - TO-220FP- IPAK - DPAK Second generation.
