STF11N50M2

N-CHANNEL POWER MOSFET

STF11N50M2 Features

* Order code VDS @ TJmax RDS(on)max. STD11N50M2 STF11N50M2 550 V 0.53 Ω

* Extremely low gate charge

* Excellent output capacitance (COSS) profile

* 100% avalanche tested

* Zener-protected ID 8A Package DPAK TO-220FP Applications

* Switching application

STF11N50M2 General Description

These devices are N-channel Power MOSFETs developed using the MDmesh™ M2 technology. Thanks to their strip layout and improved vertical structure, these devices exhibit low on-resistance and optimized switching characteristics, rendering them suitable for the most demanding high-efficiency converter.

STF11N50M2 Datasheet (736.43 KB)

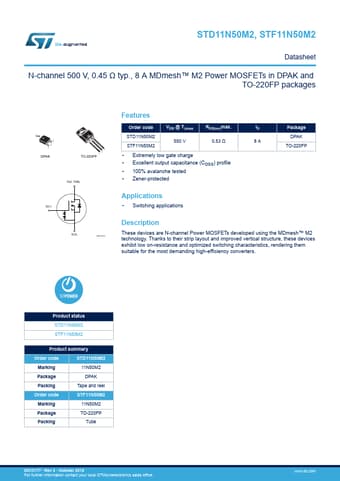

Preview of STF11N50M2 PDF

Datasheet Details

Part number:

STF11N50M2

Manufacturer:

STMicroelectronics ↗

File Size:

736.43 KB

Description:

N-channel power mosfet.
STD11N50M2, STF11N50M2 Datasheet N-channel 500 V, 0.45 Ω typ., 8 A MDmesh™ M2 Power MOSFETs in DPAK and TO-220FP packages TAB 3 2 1 DPAK 3 2 1 TO-22.
