STF100N6F7 N-CHANNEL POWER MOSFET

This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching. 6  $0Y Order code STF100N6F7 Table 1. Device .

STF100N6F7 Features

* Order code STF100N6F7 VDS RDS(on) max. ID PTOT 60 V 5.6 mΩ 46 A 25 W   72)3 Figure 1. Internal schematic diagram '

*

* Among the lowest RDS(on) on the market

* Excellent figure of merit (FoM)

* Low Crss/Ciss ratio for EMI immunity

* High avalanche

STF100N6F7 Datasheet (423.86 KB)

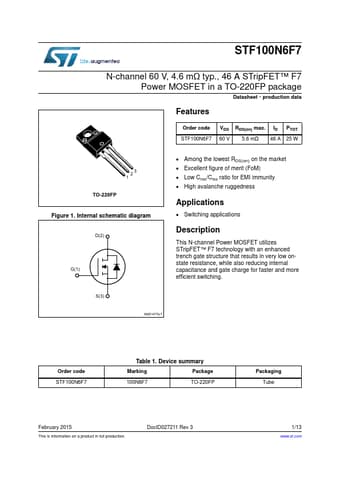

Preview of STF100N6F7 PDF

Datasheet Details

Part number:

STF100N6F7

Manufacturer:

STMicroelectronics ↗

File Size:

423.86 KB

Description:

N-channel power mosfet.
