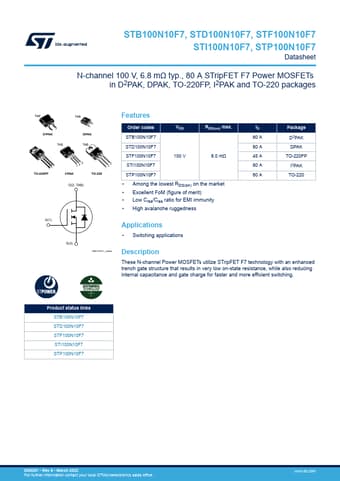

STF100N10F7 Datasheet, Mosfet, STMicroelectronics

STF100N10F7 Features

• Mosfet Order codes VDS RDS(on) max. ID STB100N10F7 80 A STD100N10F7 80 A STF100N10F7 100 V 8.0 mΩ 45 A STI100N10F7 80 A STP100N10F7 80 A
• Among the lowest RDS(on) on

PDF File Details

Part number:

STF100N10F7

Manufacturer:

STMicroelectronics ↗

File Size:

666.24kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. These N-channel Power MOSFETs utilize STripFET F7 technology with an enhanced trench gate structure that results in very low on-state

STF100N10F7 Application

• Applications
• Switching applications Description These N-channel Power MOSFETs utilize STripFET F7 technology with an enhanced trench gate
