STFU18N65M2

N-CHANNEL POWER MOSFET

STFU18N65M2 Features

* Order code STFU18N65M2 VDS 650 V RDS(on) max 0.33 Ω ID 12 A

* Extremely low gate charge

* Excellent output capacitance (Coss) profile

* 100% avalanche tested

* Zener-protected Applications

* Switching applications

* LLC converters, resonant converters Description This dev

STFU18N65M2 General Description

This device is an N-channel Power MOSFET developed using MDmesh™ M2 technology. Thanks to its strip layout and an improved vertical structure, the device exhibits low on-resistance and optimized switching characteristics, rendering it suitable for the most demanding high efficiency converters. S(3).

STFU18N65M2 Datasheet (430.95 KB)

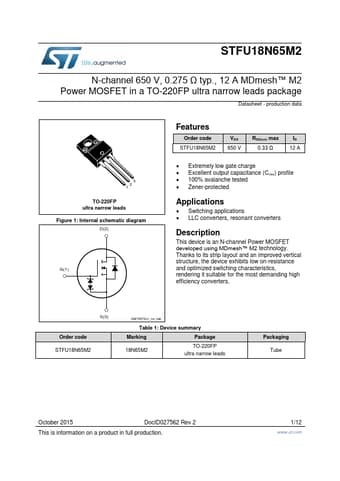

Preview of STFU18N65M2 PDF

Datasheet Details

Part number:

STFU18N65M2

Manufacturer:

STMicroelectronics ↗

File Size:

430.95 KB

Description:

N-channel power mosfet.
STFU18N65M2 N-channel 650 V, 0.275 Ω typ., 12 A MDmesh™ M2 Power MOSFET in a TO-220FP ultra narrow leads package Datasheet - production data 3 2 1 T.
