STFW8N120K5 - N-channel MOSFET

STMicroelectronics

The STFW8N120K5 by STMicroelectronics is a N-channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

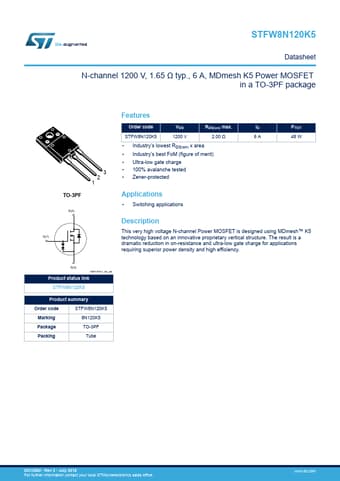

STFW8N120K5 N-channel MOSFET by STMicroelectronics - Datasheet Preview — Official preview page of the STFW8N120K5 N-channel MOSFET datasheet (STMicroelectronics).

Datasheet Details

Part number	STFW8N120K5
Manufacturer	STMicroelectronics
File Size	298.53 KB
Description	N-channel MOSFET
Datasheet	STFW8N120K5-STMicroelectronics.pdf
Additional preview pages of the STFW8N120K5 datasheet.

STFW8N120K5 Product details

Description

This very high voltage N-channel Power MOSFET is designed using MDmesh™ K5 G(1) technology based on an innovative proprietary vertical structure.

Features

3 2 1 Order code VDS RDS(on) max. STFW8N120K5 1200 V 2.00 Ω.
Industry’s lowest RDS(on) x area.
Industry’s best FoM (figure of merit).
Ultra-low gate charge.
100% avalanche tested.
Zener-protected ID 6A PTOT 48 W TO-3PF D(2).
