STK224N4F7AG

Automotive-grade N-channel Power MOSFET

STK224N4F7AG Features

* Order code STK224N4F7AG V DS 40 V RDS(on) max 1.5 mΩ

* AEC-Q101 qualified

* Among the lowest RDS(on) on the market

* Excellent FoM (figure of merit)

* Low Crss/Ciss ratio for EMI immunity

* High avalanche ruggedness Applications

* Switching applica

STK224N4F7AG General Description

S(1, 2, 3) This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low on-state resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching. G4S123DTAB_LFPAK Product status STK224N4F.

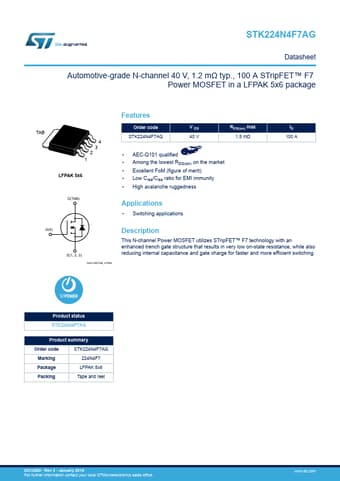

STK224N4F7AG Datasheet (440.98 KB)

Preview of STK224N4F7AG PDF

Datasheet Details

Part number:

STK224N4F7AG

Manufacturer:

STMicroelectronics ↗

File Size:

440.98 KB

Description:

Automotive-grade n-channel power mosfet.
STK224N4F7AG Datasheet Automotive-grade N-channel 40 V, 1.2 mΩ typ., 100 A STripFET™ F7 Power MOSFET in a LFPAK 5x6 package TAB 4 3 2 1 LFPAK 5x6 D(T.
